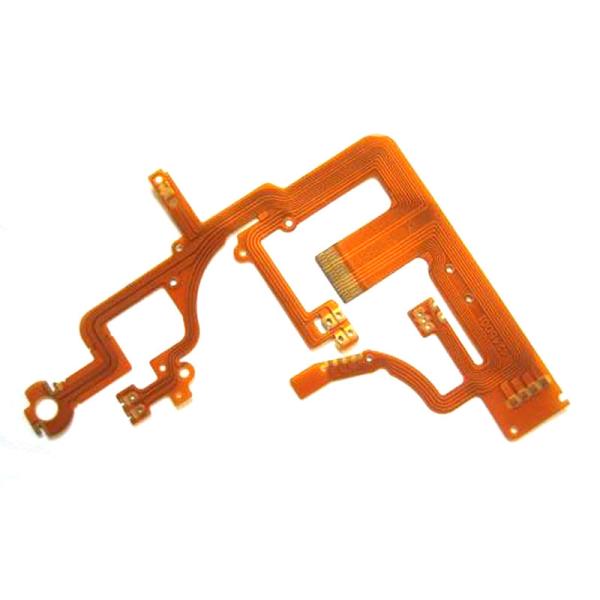

One Stop Other Flexible PCBs PCBA Manufacture And Assembly
Product Description:
| Article | Description | Description |
| Sercive | PCB and SMT assembly with one-stop service |
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC |
|
Board cutting
| Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) |
|
Board thickness
| Standard | Standard |
|
Min
| Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper weight | Outer Cu weight | 0.5-4 0z |
| | Inner Cu weight | 0.5-3 0z |
|
Drilling
| Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
|
Solder mask
| Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
|
Silkscreen
| Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| | Function Test | 100% Functional test |
| PCBA Testing | X-ray,AOI Test,Functional test |
| Pcb assembly | one-stop service electronic manufacxturer service |
| Component sourcing | Yes |
| Certificate | IATF16949, ISO13485, ISO9001 |
| Delivery time: | PCB | 3-8 days |
| PCBA | 10-20 days |
| Tolerance of pcb | ±5% |
| MOQ | No MOQ ( 1 PCS ) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB outline | Square,circle,irregular(with jigs) |
| package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
Company Introduction:
FASTPCBA provide full turnkey contract included Custom design, PCB prototype, PCB, PCBA, PCB Assembly, testing, accessories and cables, plastic enclosure,and packaging.box building.
EMS include consumers electronic ,medicla, industrial,power control, automotive. Temperature & Humidity ,Internet & Communication Smart Home Security etc device .
Our Services & Strength:
FASTPCBA is the best pcb manufacturing and pcb assembly factory globally, with ISO9001, ISO13485, 14000, and IATF16949 certificates simultaneously.
FASTPCBA keeps pace with the times, has imported advanced YAMAHA, MADATA, selective wave soldering, 3D AOI, X-RAY etc equiments, we can provide original package componets agent service, custom pcb manufacturing, precise pcb assembly, accurate pcb printing, save your cost and time at the same time.
All PCBA are double Check by Machines and QC work , Welcome to Visit our factory!
More PCBA Case:
Our services specialize in prototyping & OEM and small-volume production, making your requirment complete on the one-stop destination of boards fabrication and assembly.
